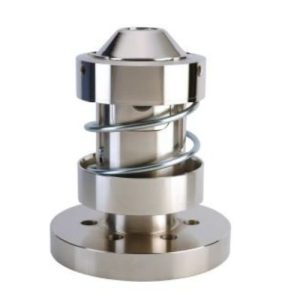

It allows the expulsion of the core once the roll stand is open. It eliminates the time spent changing rolls and prevents damages to the Core Chucks upon extracting the cores.
The internal cylinder allows a uniform expansion of the lugs, assuring the perfect gripping of the rolls. There is a wide range of adapters available.
The bigger contact surface of gripping allows the perfect centering and helps to eliminate core damages. Can be tailor made to your particular requirements, from 3" to 16".
Can be tailor-made to your particular requirements, from 2.5" to 16". Alternatively, our core chucks can be manufactured for installation on roll stands with photocells or other reading systems.
Allows the use of 2 or 3 different core sizes. Between the most common dimensions we have Double Core Chucks of 3"/4" and 3"/6", although the possibilities are numerous.
Activated with the torque of the roll, it can work clockwise and unclockwise. The core is not damage thanks to the big contact surface of the lugs, so rolls can be reuse many times.
Core Chuck designed for exceptional grip in all situations, with maximum braking torque and dealing with any brusque changes of unwinding speed.
Our experience manufacturing machinery and pneumatic or mechanical core chucks allows us to manufacture tailor made core chucks.
The body can be made of steel at any diameter or with extruded aluminium, for unified diameters cores (2", 3", 4", 6" y 8"), but upon request, any different or special diameter can be produced.

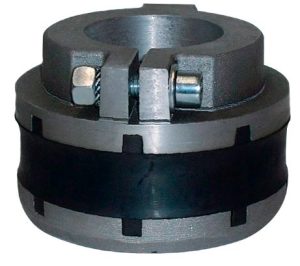

The system is use for winding and unwinding of coils having different core from the one foreseen by the machine.

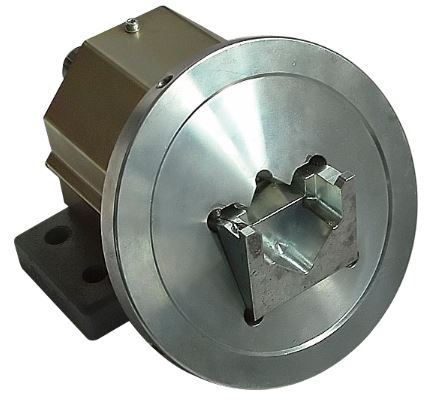

Are use to hold the shafts during winding or unwinding operations. The shaft is fixed by means of the journal to the safety chuck, and with a security system the shaft is blocked.
